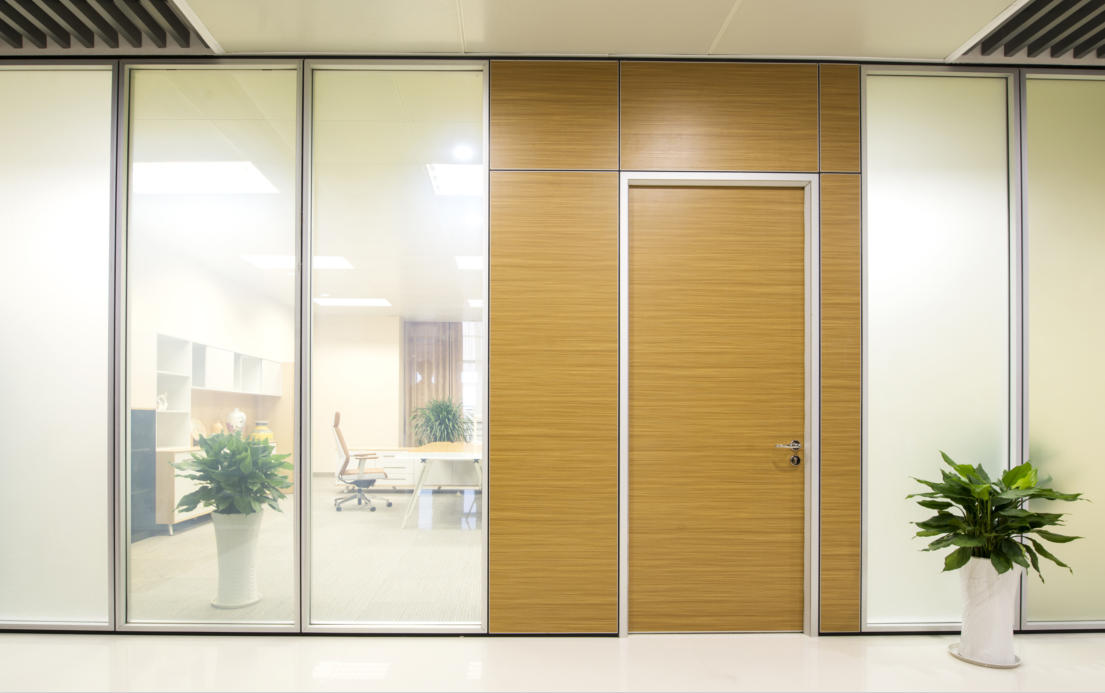

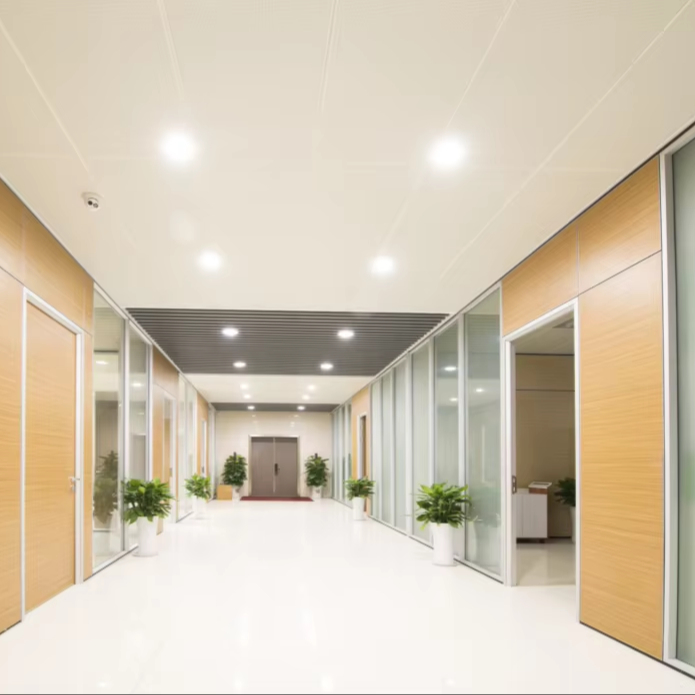

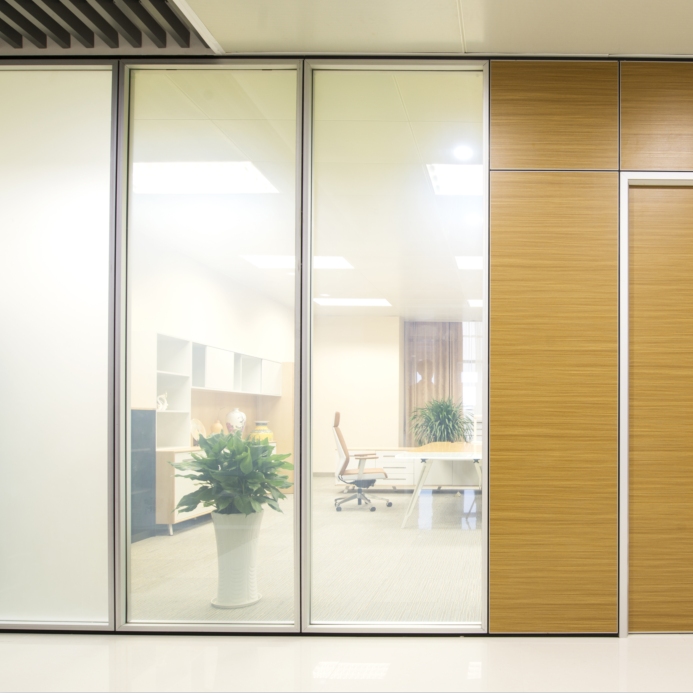

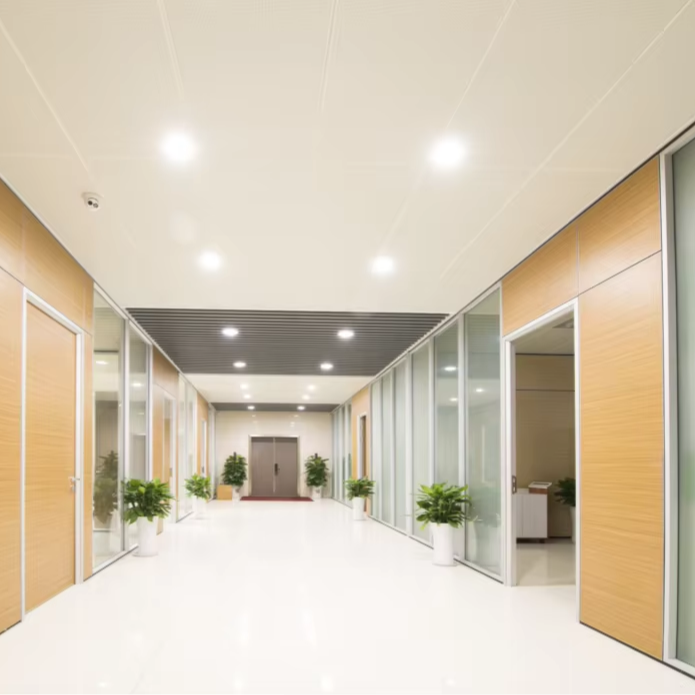

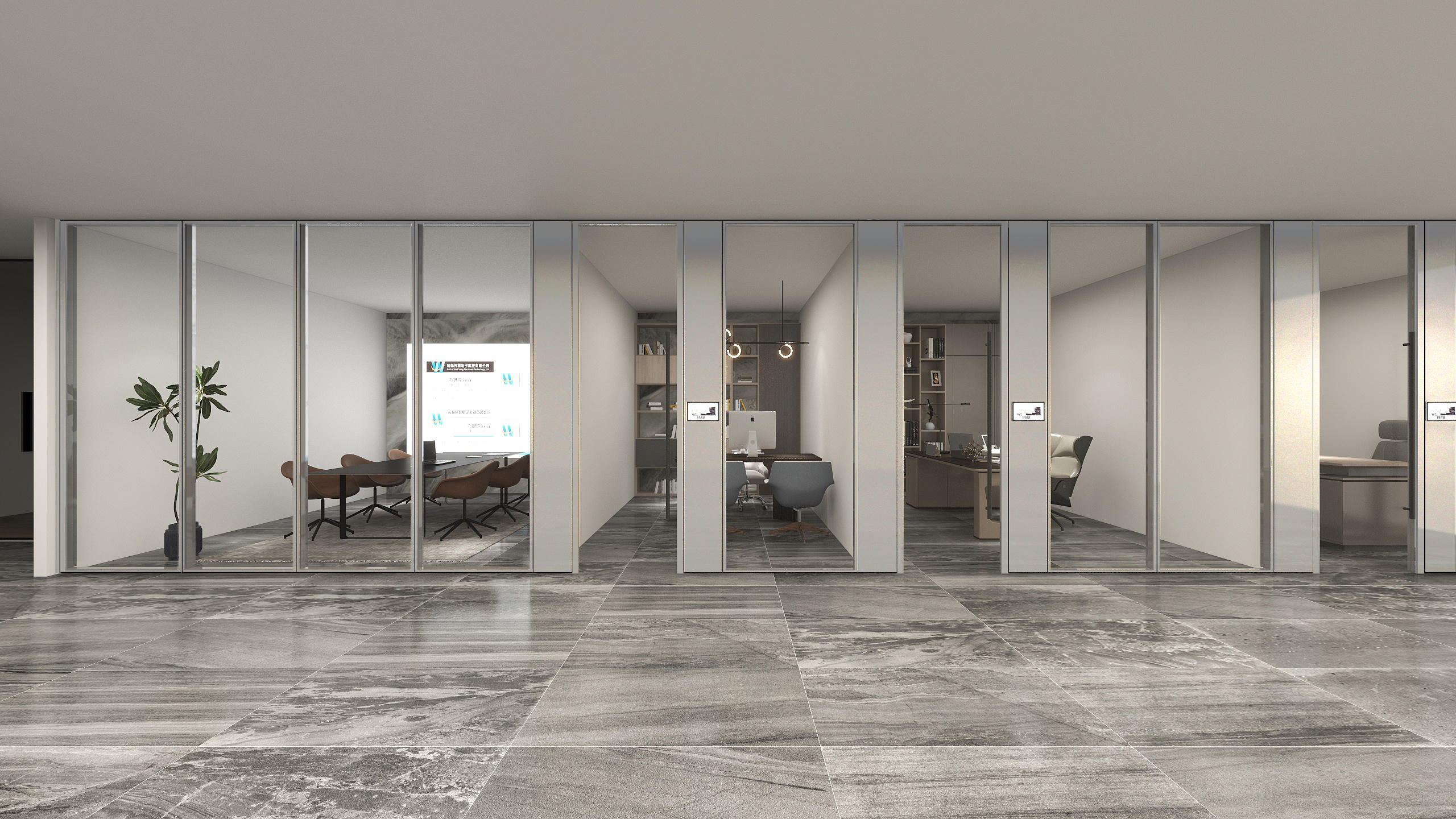

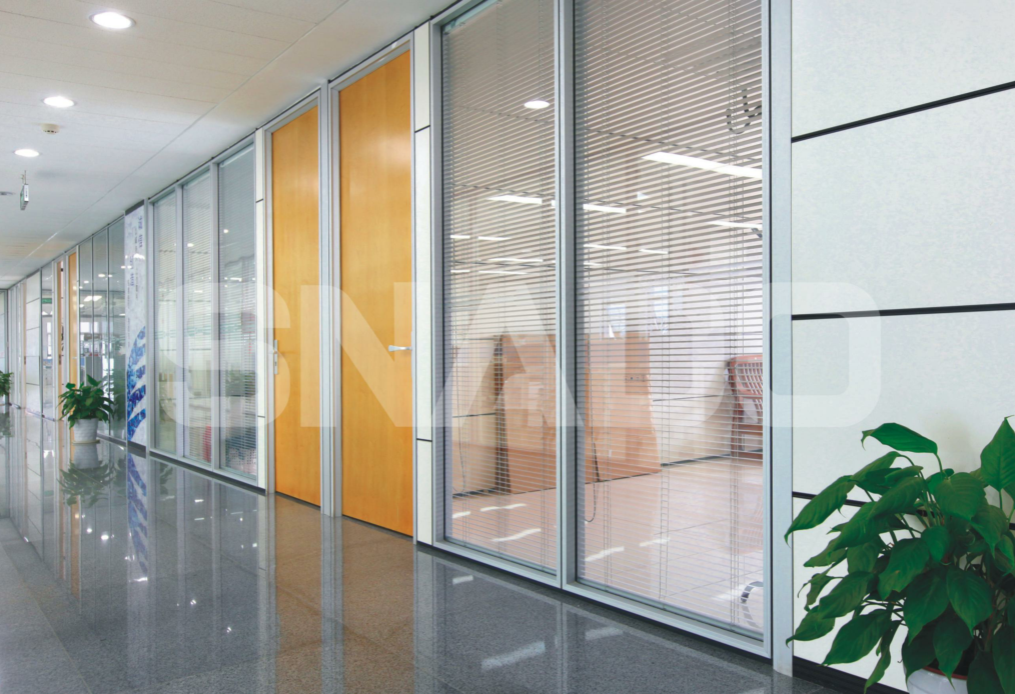

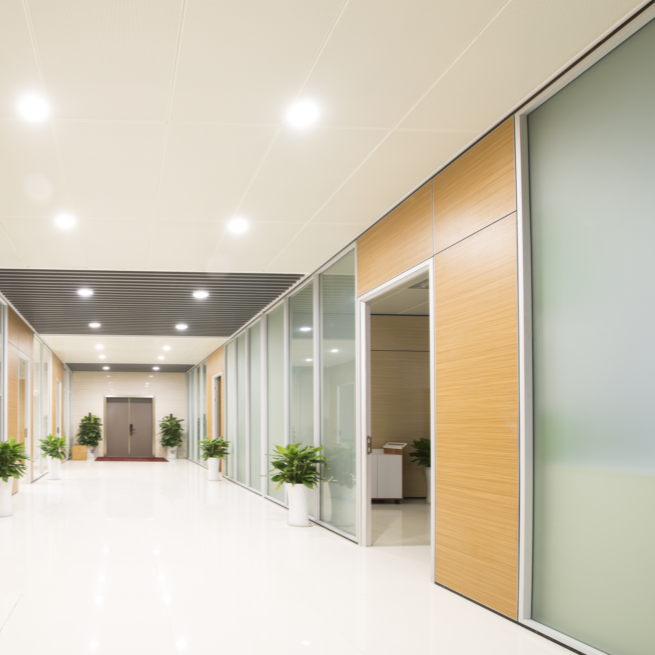

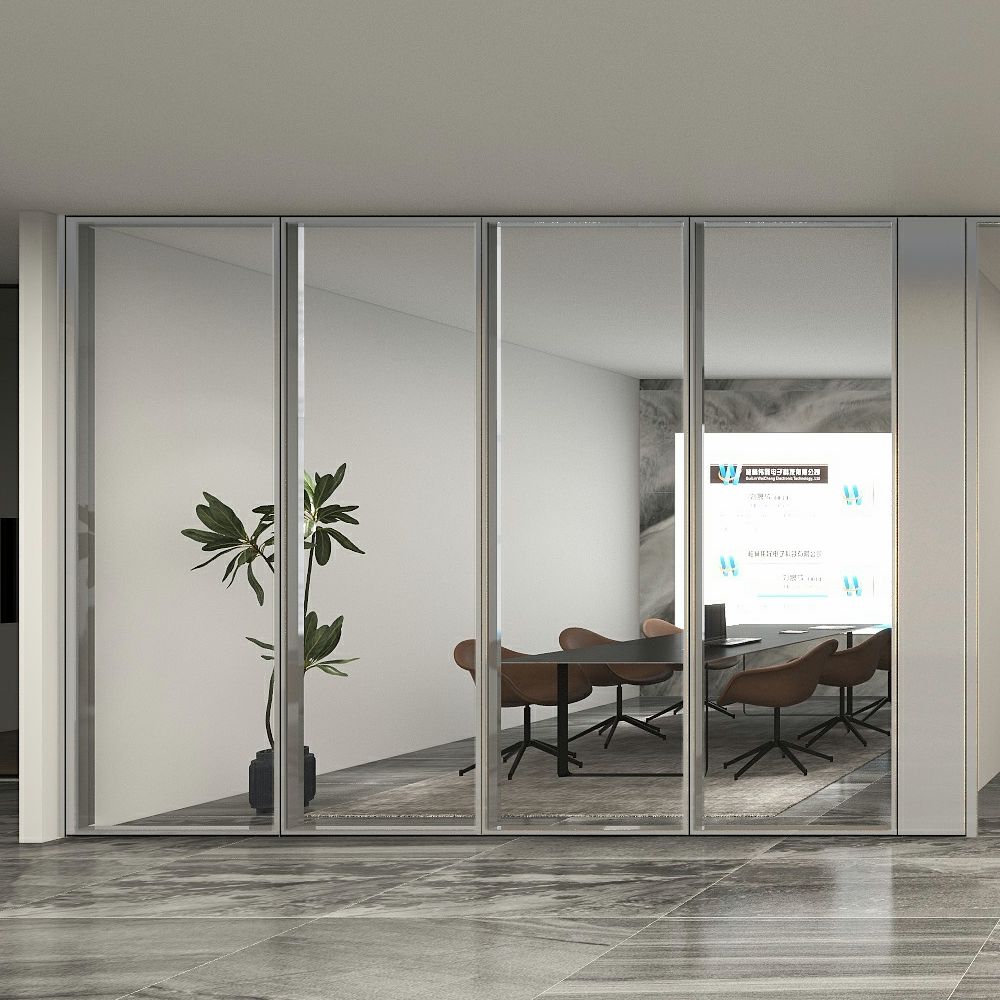

Startup Budget Glass Office Partition for Cost-Effective Space Planning

Quantity:
Availability:





Inquire Add to Basket

Office Glass Wall System For Modern Workplace Configurations commercial Glass Room Divider For Corpo

Product Description

Product Name	90-G Panoramic Glass Partitions
Specification And Model	90-G
Metal Frame	Internal Steel And External Aluminum Gb6063-T5
Load Bearing Material	U-Shaped Galvanized Steel Sheet; Roll Riveting; Steel Plate Thickness 1.2mm
Spraying Method	Electrostatic Spray
Upper And Lower Frames	Height 35mm; Double-Layer Wall Thickness 1.3mm (Unconventional 2.0mm)
Gate Post	Thickness 2.8mm
Width Between Glasses	Module
Interlayer	Imported 1mm Thick; 3M Transparent Adhesive
Glass Thickness	Double Glass 5mm+5mm
Cutting Deviation	Diagonal ± 0.5mm
Glass Material	Tempered Glass
Metal Surface Treatment	Rust Proof
Equipment Belt	0.8mm Thick Steel Plate; Lining 12mm Gypsum Board/0.2mm Thick Steel Corrugated Board; The Thickness of The Finished Product is 13mm

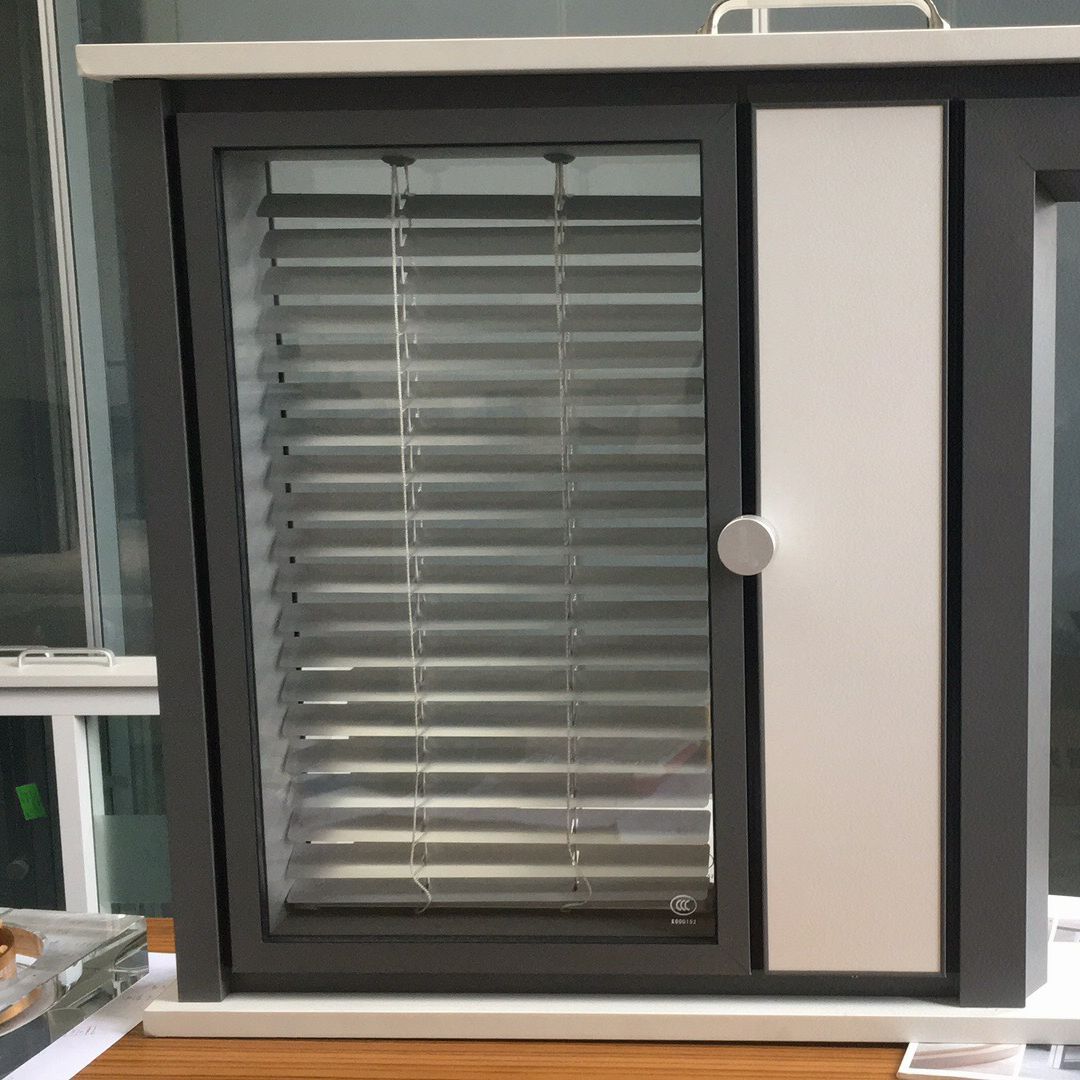

Auxiliary Materials	0.16mm Thick * 25mm Wide; Aluminum Alloy Louvers 45 Pieces/m
Installation Process	Assemble Type
Packaging Method	Box
Supply Cycle	10-15 Days
Mode of Transport	Highway And Sea Transportation
After-Sale Service	After Sales Guarantee for 5 Years

1.We calculate the price by square meter , however, it has a variation in price for every single project. Four key factors influence pricing :
1) Material & design Selection;
2) Hardware choice;
3) Partition width & height ;
4) Acoustic performance requirement.

2. What materials can be selected for office Aluminium partition wall ?
We have different types with single / double glazed or solid panels, glass can be clear tempered glass, frosted glass, painting glass, smart glass etc..Solid materials can be melamine laminate, HPL, Aluminium board, Steel plate.

3. How easy is it to install or remove a framed glass partition?
It's 100% removable and reusable. All modular parts will be pre-assembled in our factory, what you need to to is follow sequence to fix materials over flooring and under gypsum ceiling . We have detailed installation video from A to Z, we can also provide supervisor in site to install if you need.

4. How do they compare to drywall?
1) Office glass partition systems are more cost-effect.
2) Install easier and more faster than drywall.
3) Panels can be removed and reconfigured to fit other areas.
4) Provide the better Sound Transmission Class ratings than drywall.
5) Noble and elegant appearance by various design.
