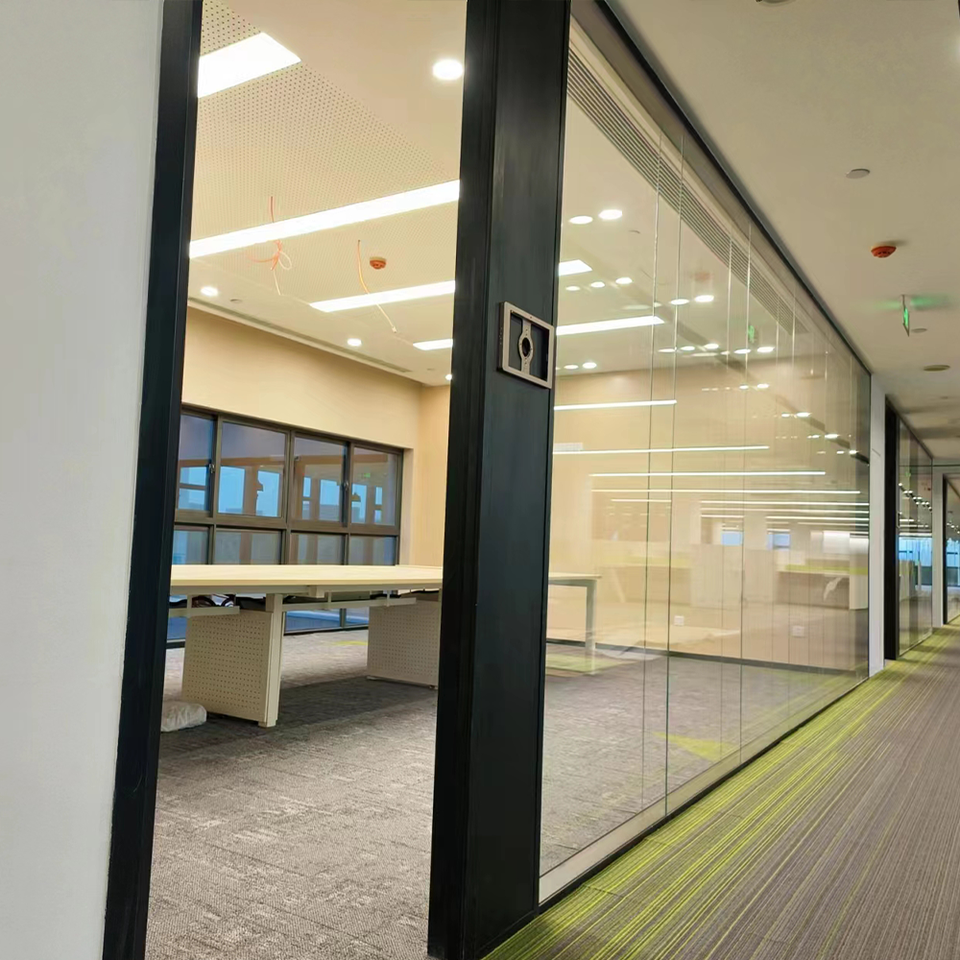

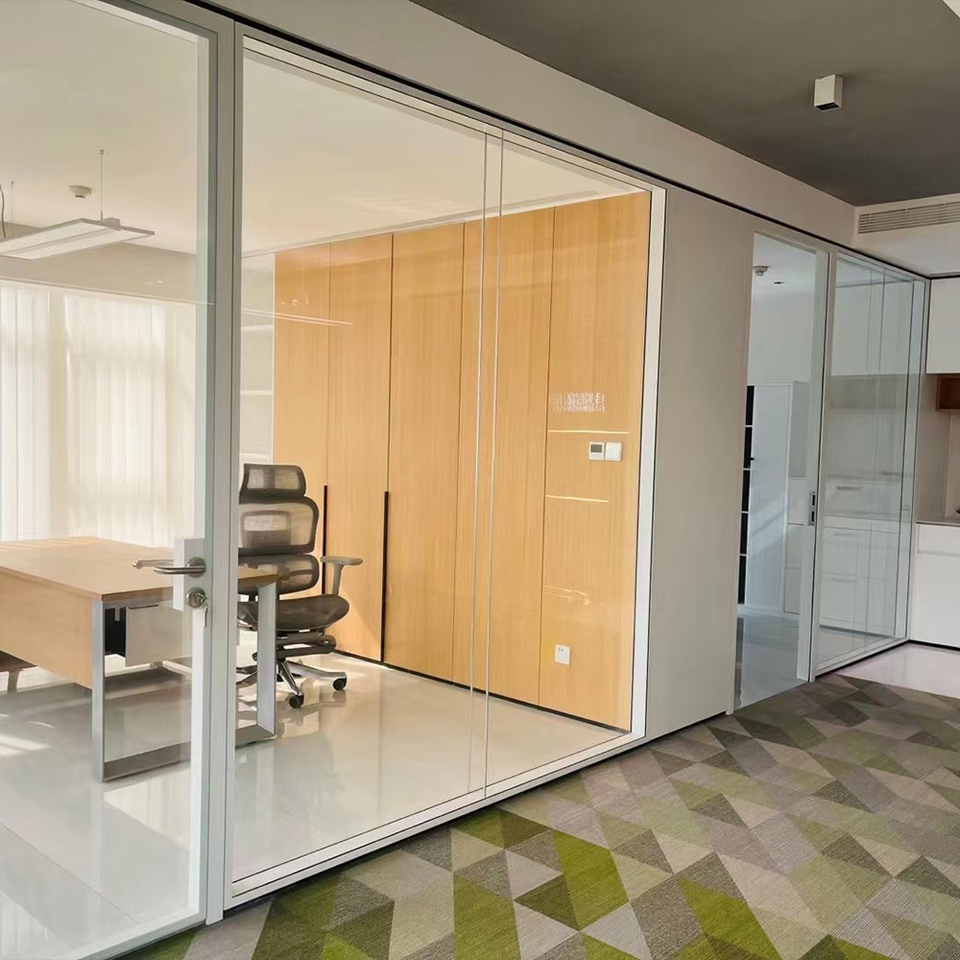

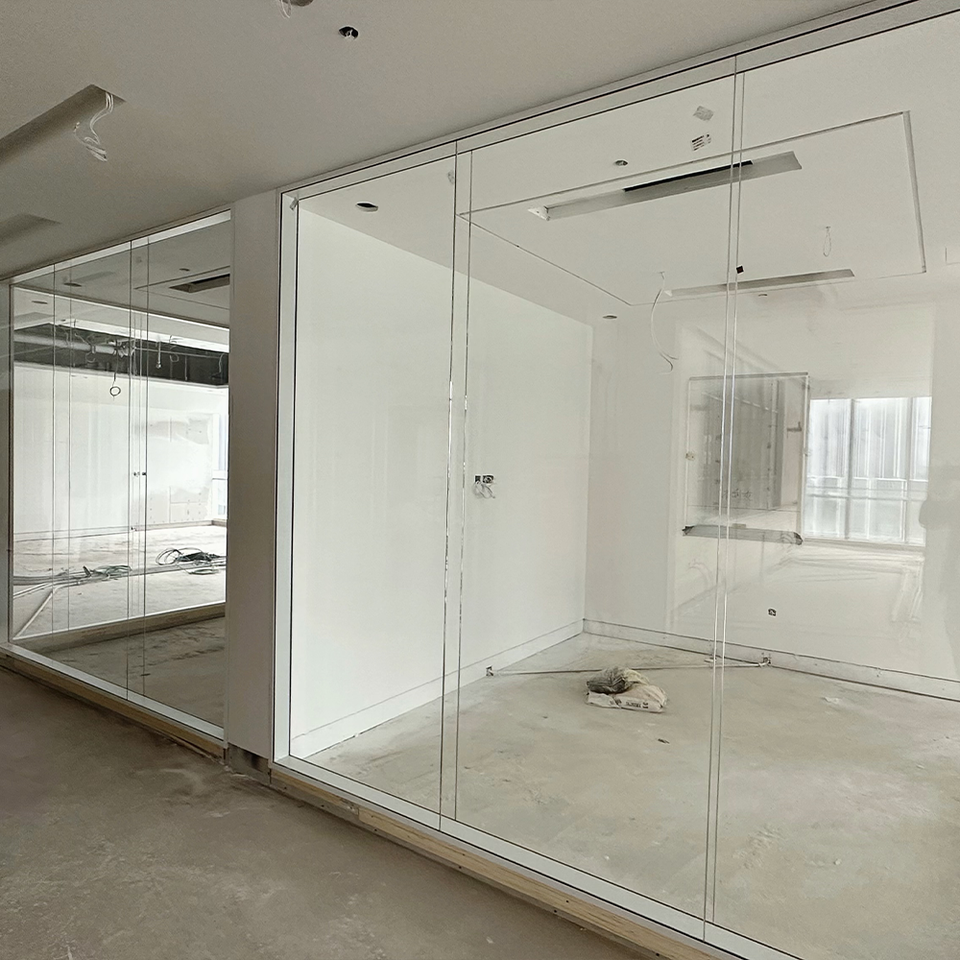

Modern Panoramic View High Performance Design Quality Tempered Double Glass Office Partition

Modern Panoramic View High Performance Design Quality Tempered Double Glass Office Partition

Quantity:
Availability:





Inquire Add to Basket

Panoramic Style High Performance Office Workspace Wall innovative Tempered Double Glazed Office Wall

Product Description

Product Name	106C Panoramic Glass Partitions
Specification And Model	106-QJ
Metal Frame	Inner Steel And Outer Aluminum; All Steel, All Aluminum
Load Bearing Material	Double Layered Steel Keel; Roll Riveting; Thickness 2.0mm
Spraying Method	Electrostatic Spray
Upper And Lower Frames	Height -48mm; Thickness -1.6-2.8mm
Gate Post	Thickness 3.0mm
Width Between Glasses	1mm Wide; 3M Transparent Adhesive
Interlayer	Transparent Acrylic; Imported 1mm Thick; 3M Transparent Adhesive
Glass Thickness	Single Glass 10mm or Double Glass 12mm+12mm/10mm
Cutting Deviation	Diagonal ± 0.5mm
Glass Material	Tempered Glass
Metal Surface Treatment	Rust Proof
Equipment Belt	0.8mm Thick Steel Plate; Lining 12mm Gypsum Board/0.2mm Thick Steel Corrugated Board; The Thickness of The Finished Product is 13mm
Auxiliary Materials	0.16 Thick and 25mm Wide; Aluminum Alloy Louvers 45 Pieces/Meter; Electric
Installation Process	Fit Together Type
Packaging Method	Box
Supply Cycle	10-15 Days
Mode of Transport	Highway And Sea Transportation
After-Sale Service	After Sales Guarantee for 5 Years

1.We calculate the price by square meter , however, it has a variation in price for every single project. Four key factors influence pricing :
1) Material & design Selection;
2) Hardware choice;
3) Partition width & height ;
4) Acoustic performance requirement.

2. What materials can be selected for office Aluminium partition wall ?
We have different types with single / double glazed or solid panels, glass can be clear tempered glass, frosted glass, painting glass, smart glass etc..Solid materials can be melamine laminate, HPL, Aluminium board, Steel plate.

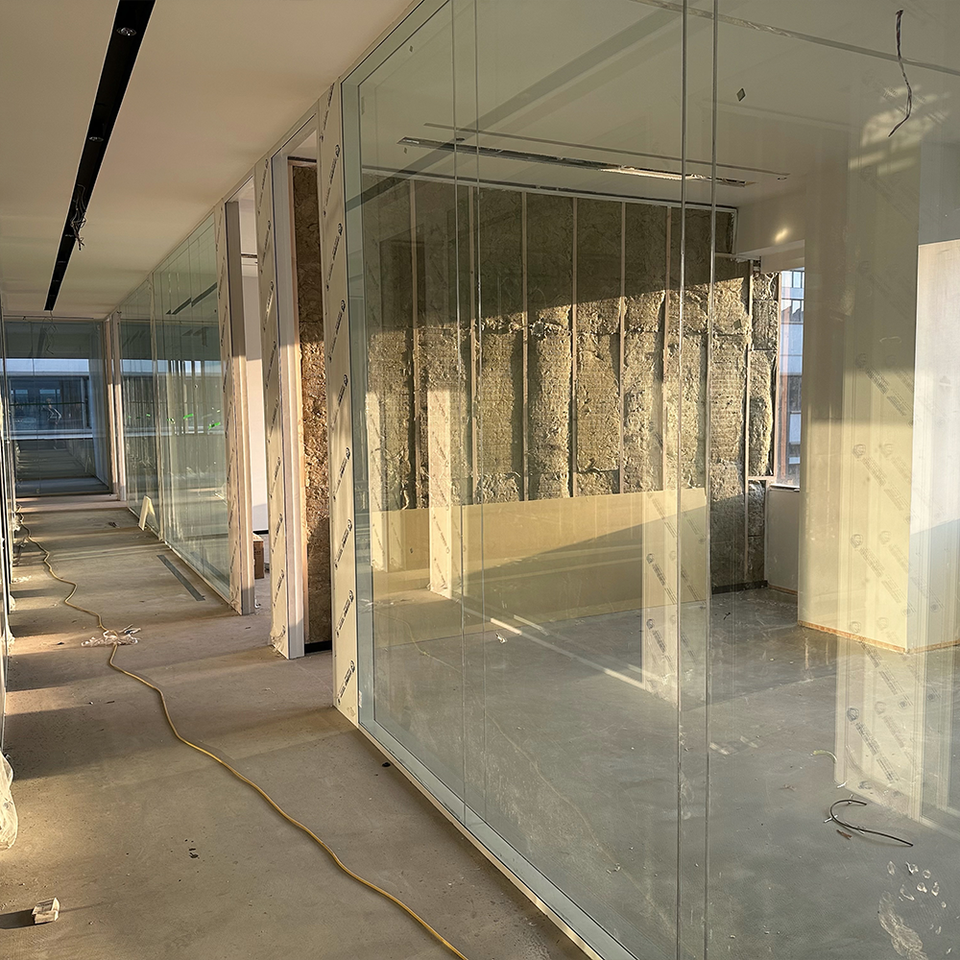

3. How easy is it to install or remove a framed glass partition?
It's 100% removable and reusable. All modular parts will be pre-assembled in our factory, what you need to to is follow sequence to fix materials over flooring and under gypsum ceiling . We have detailed installation video from A to Z, we can also provide supervisor in site to install if you need.

4. How do they compare to drywall?
1) Office glass partition systems are more cost-effect.
2) Install easier and more faster than drywall.
3) Panels can be removed and reconfigured to fit other areas.
4) Provide the better Sound Transmission Class ratings than drywall.
5) Noble and elegant appearance by various design.
