| Quantity: | |
|---|---|

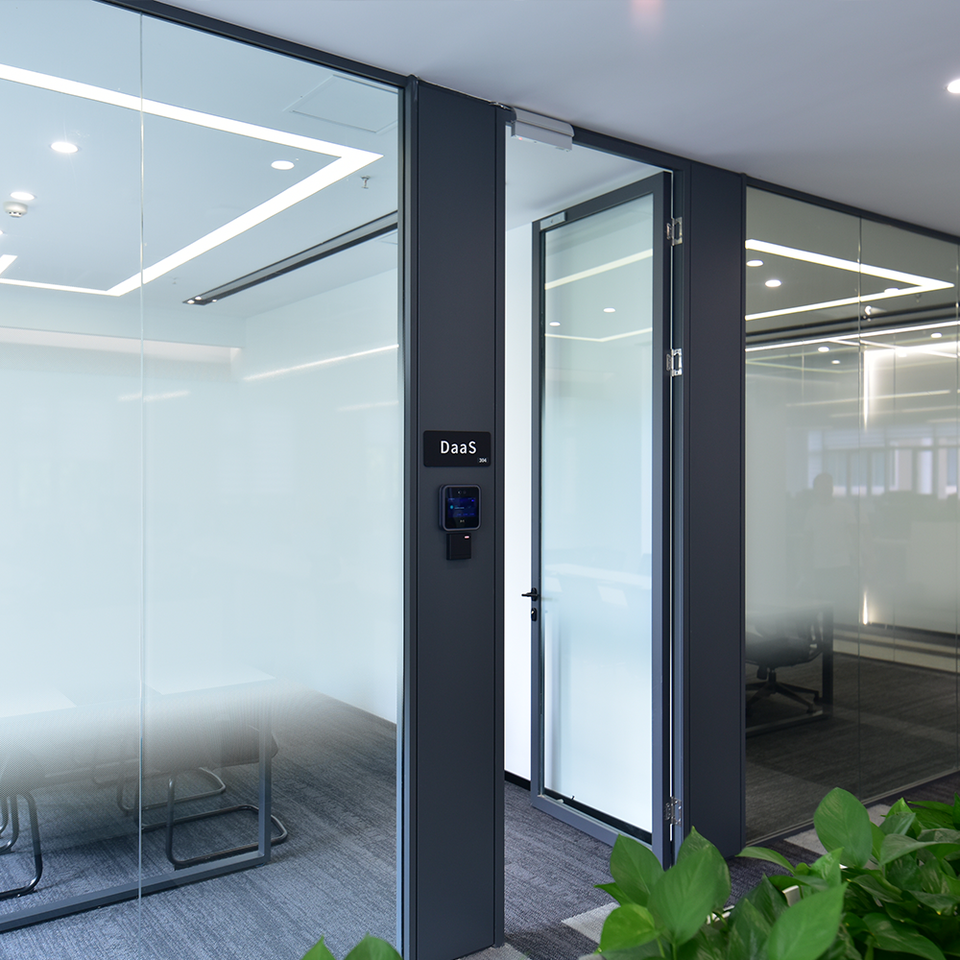

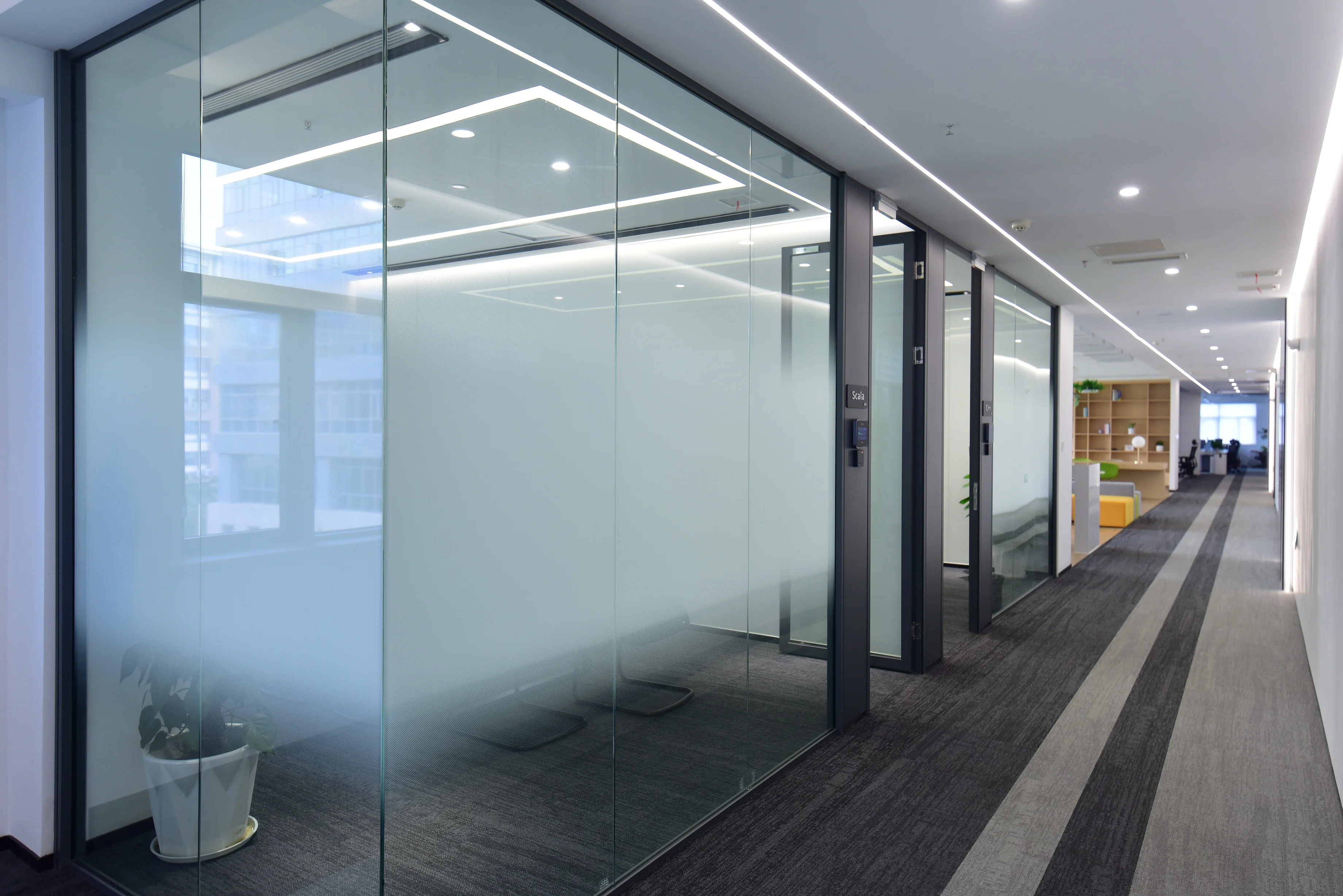

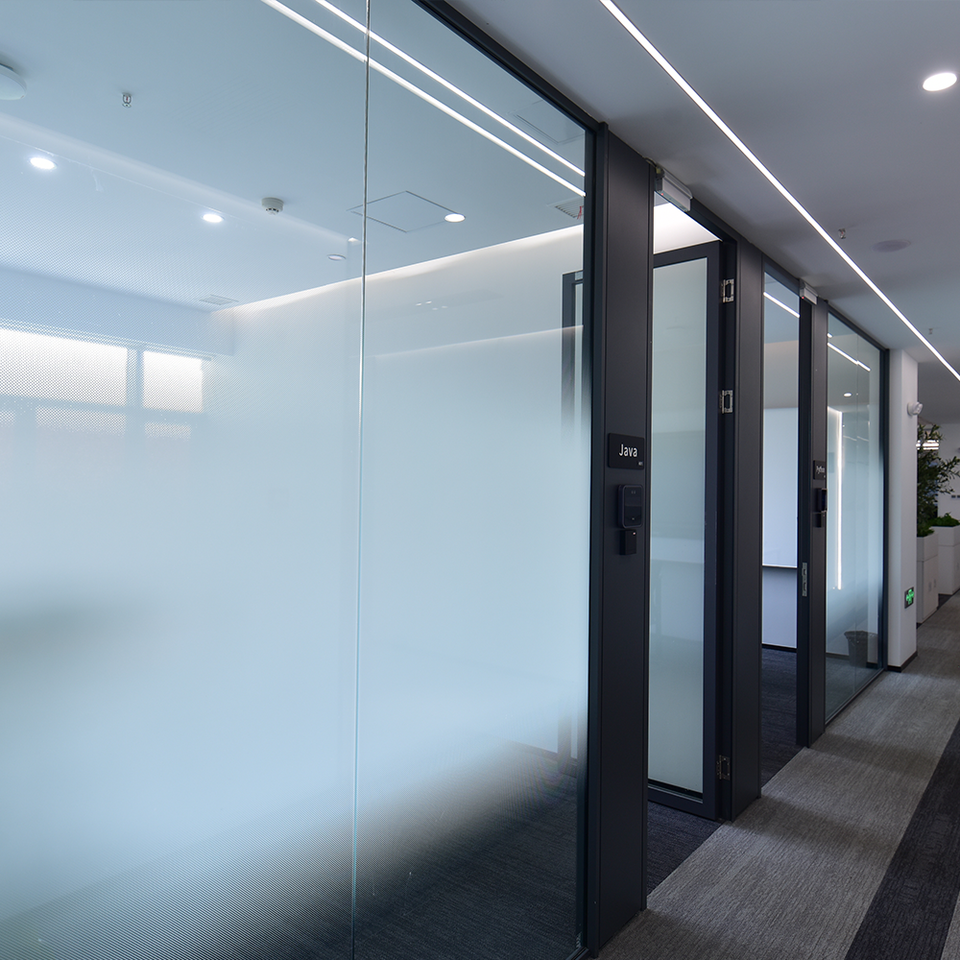

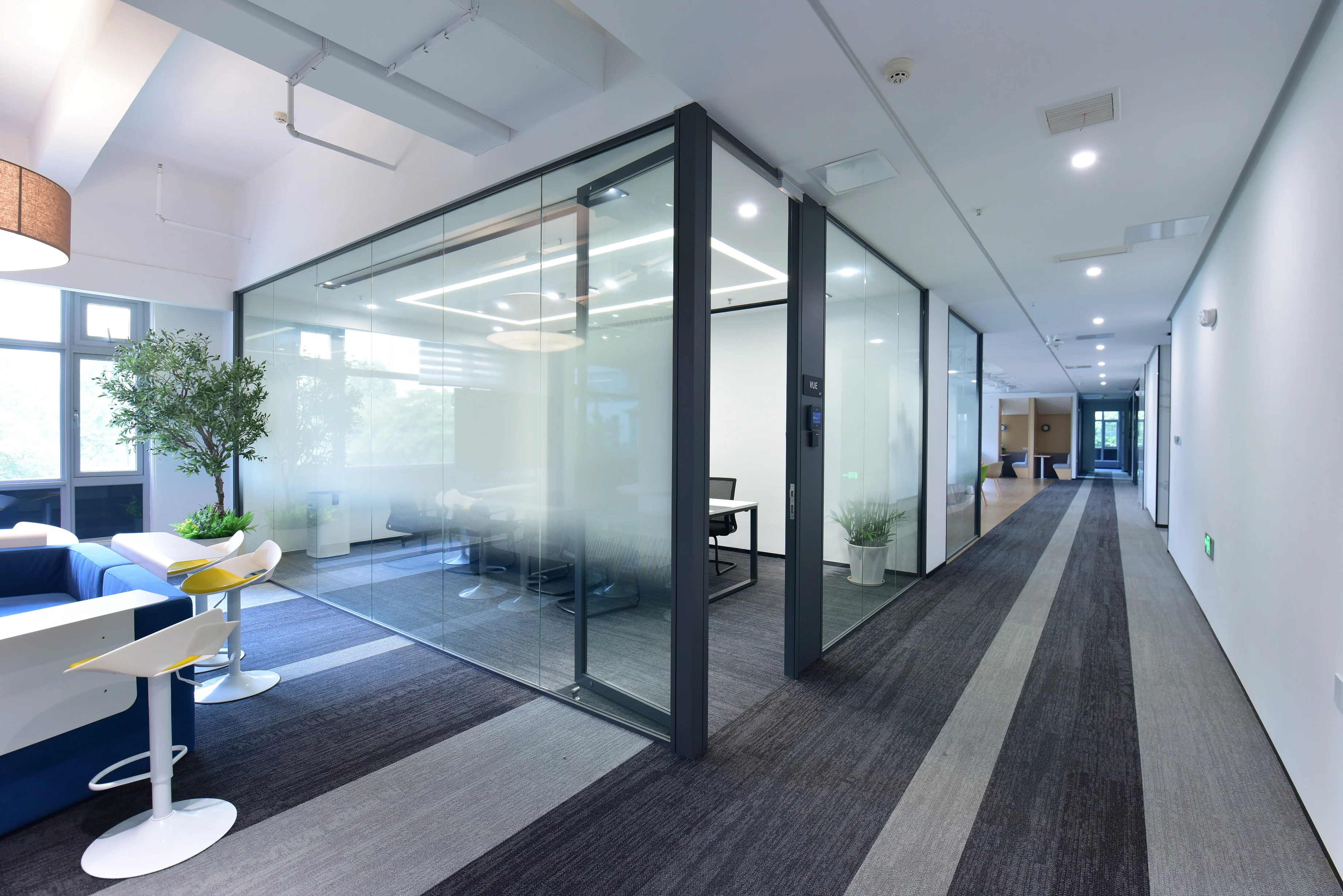

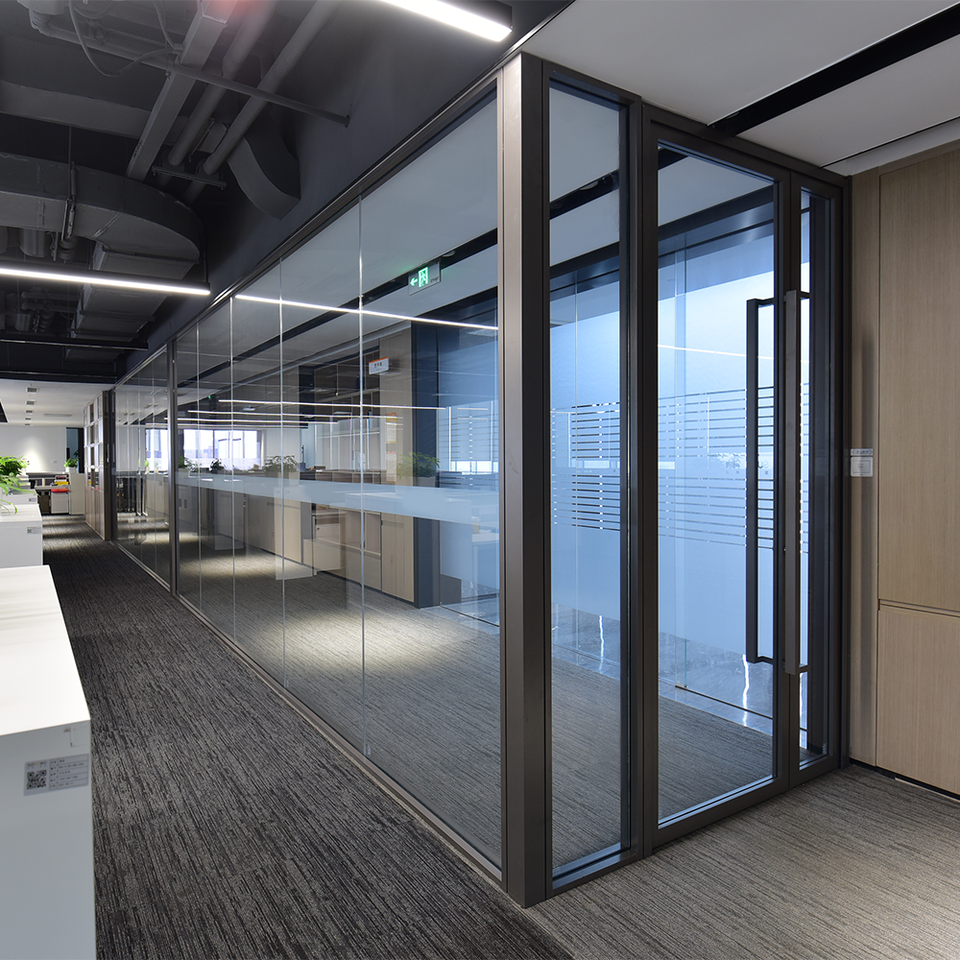

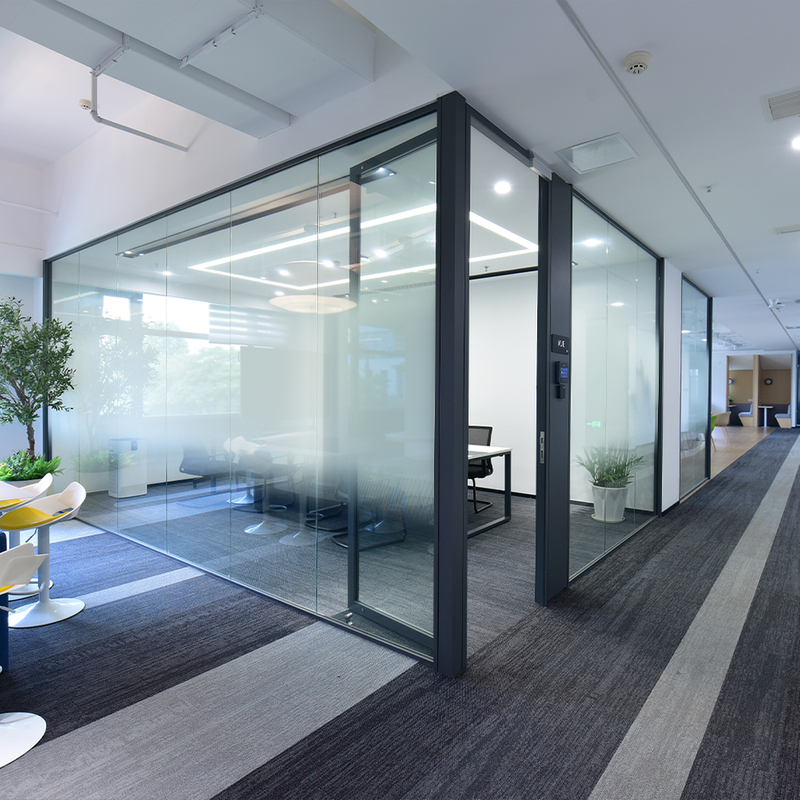

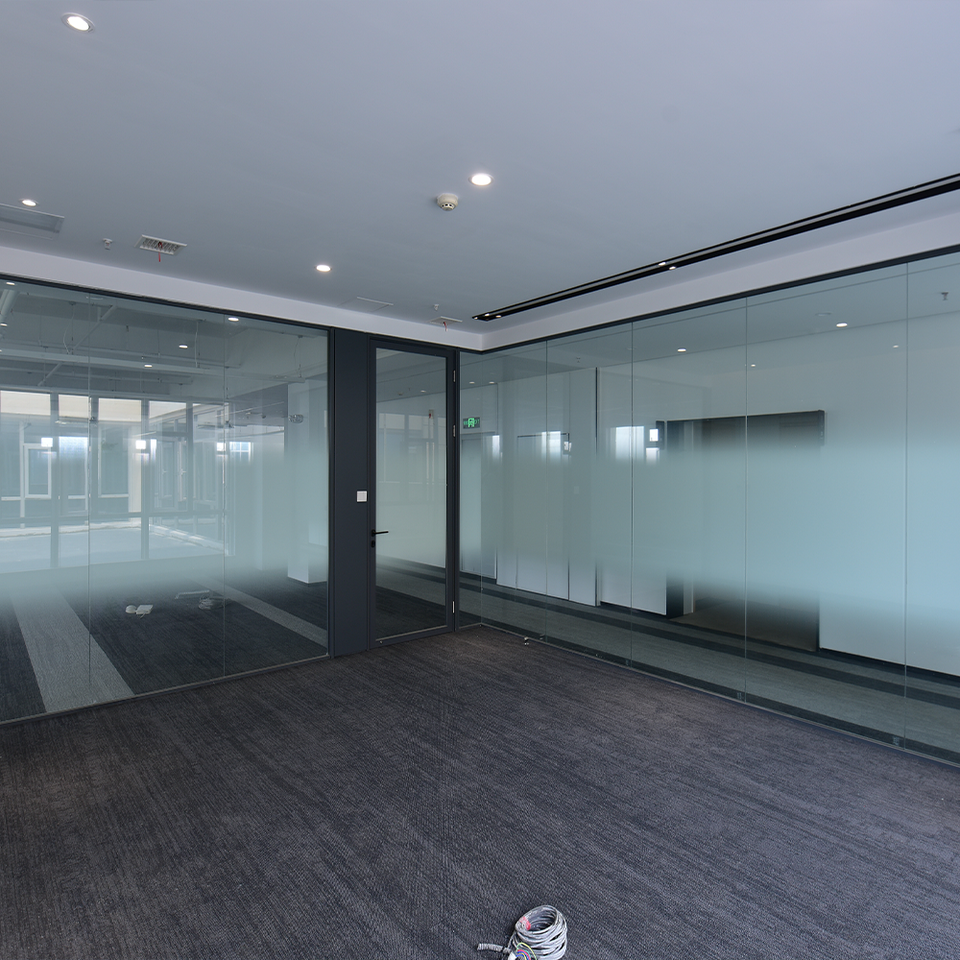

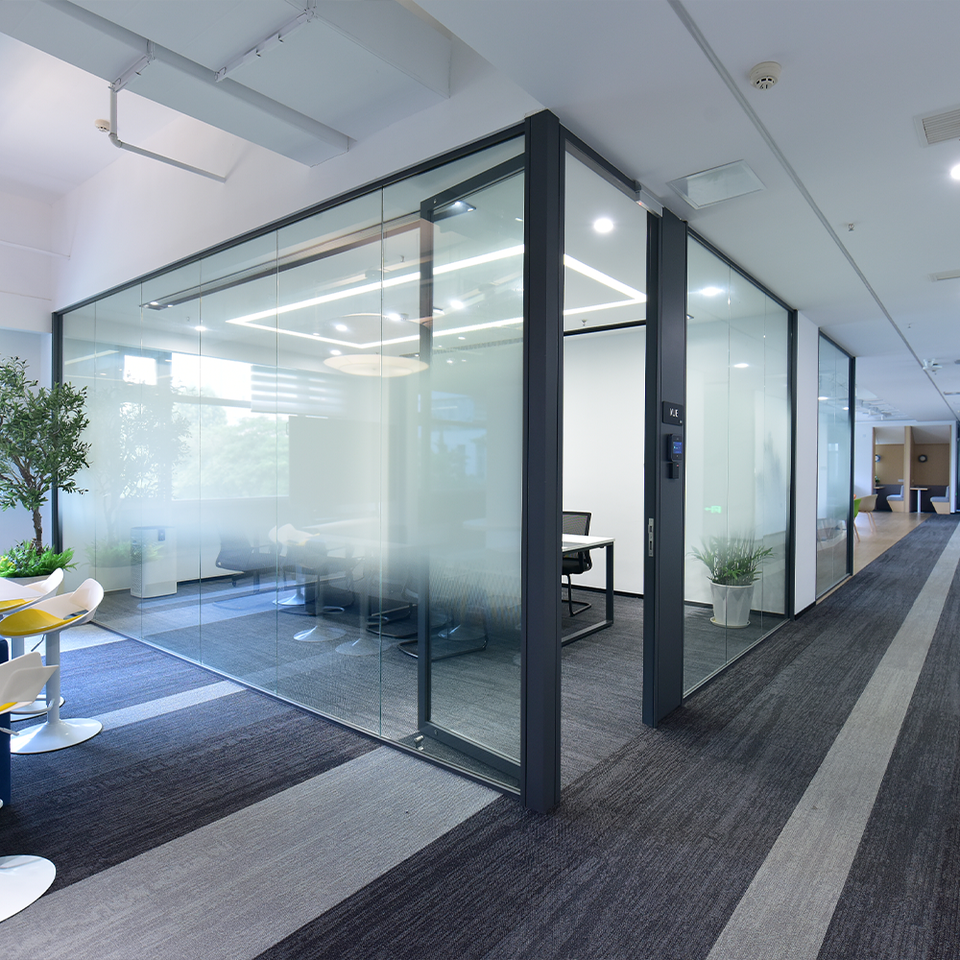

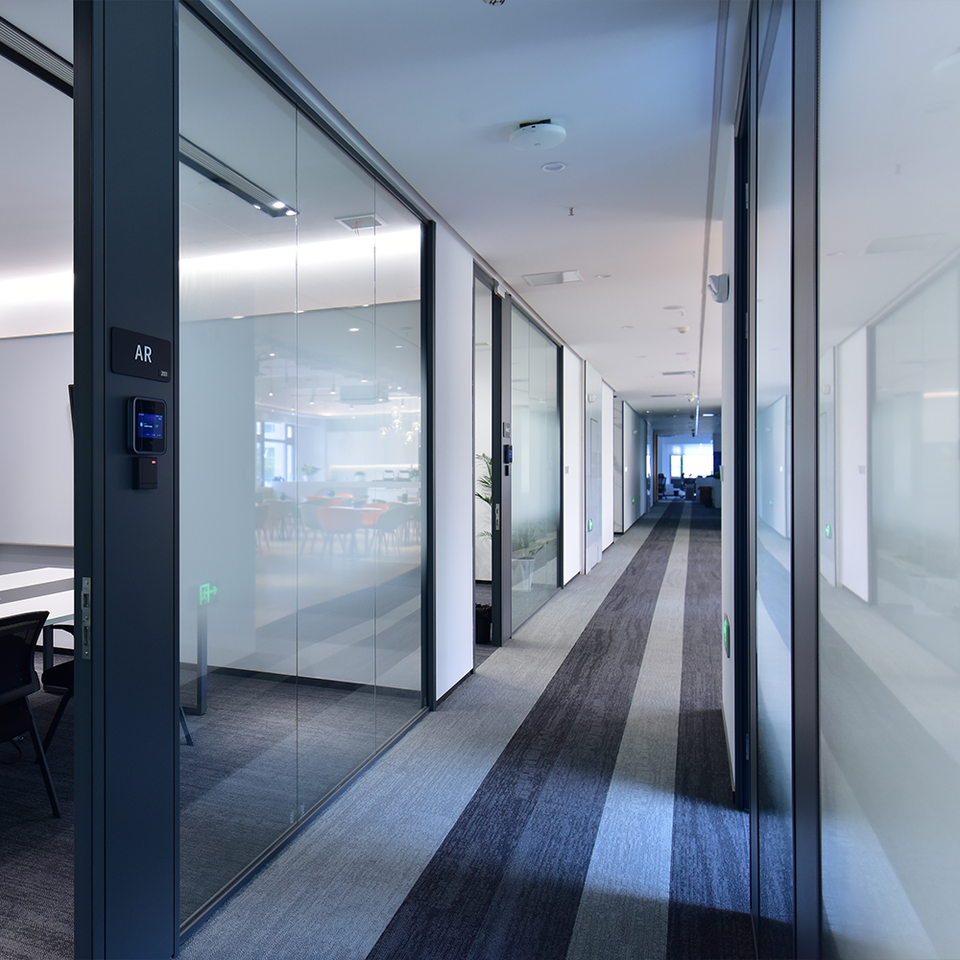

| Product Name | 90A Single Layer Glass Partitions |
| Specification And Model | Glass Partition 90A-DB |
| Metal Frame | Internal Steel And External Aluminum Gb6063-T5 |
| Load Bearing Material | U-Shaped Galvanized Steel Sheet; Roll Riveting; Steel Plate Thickness 1.2mm |
| Spraying Method | Electrostatic Spray |
| Upper And Lower Frames | Height 35mm; Single Layer Wall Thickness 1.3mm (Unconventional 2.0mm) |

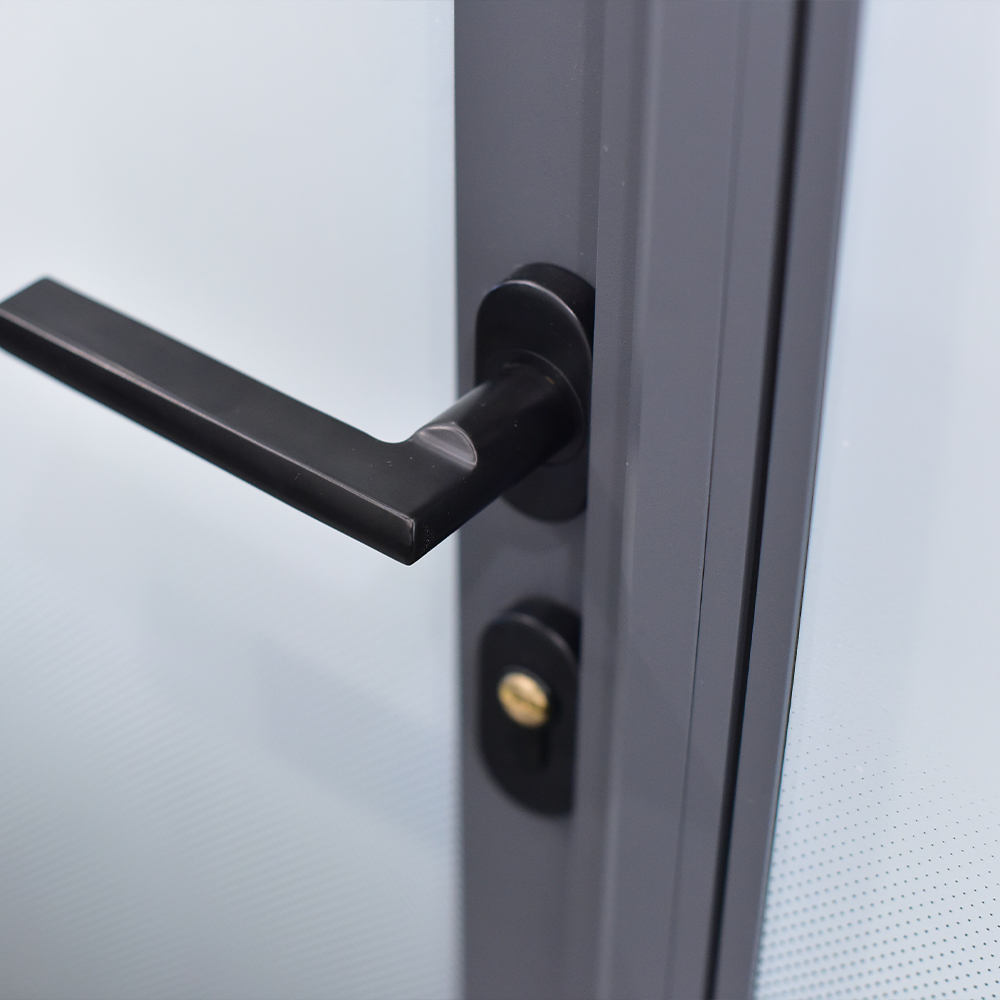

| Gate Post | Thickness 1.6mm |
| Width Between Glasses | Module |

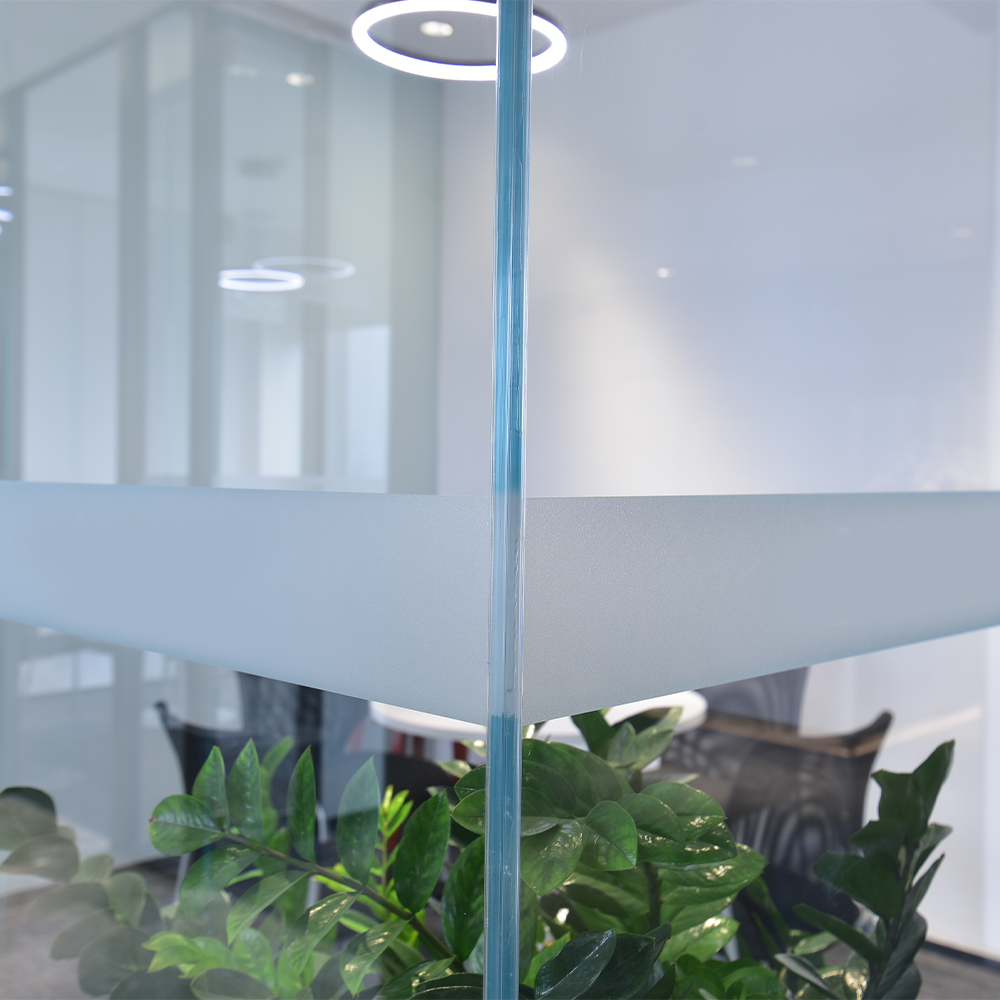

| Interlayer | Transparent Acrylic; Imported 1mm Thick; 3M Transparent Adhesive |
| Glass Thickness | Single Glass 12mm |
| Cutting Deviation | Diagonal ± 0.5mm |
| Glass Material | Ultra White Glass; Frosted Surface; Tempered Glass; Art Glass |
| Metal Surface Treatment | Rust Proof |
| Equipment Belt | 0.8mm Thick Steel Plate; Lining 12mm Gypsum Board/0.2mm Thick Steel Corrugated Board; The Thickness of The Finished Product is 13mm |
| Auxiliary Materials | 0.16mm Thick * 25mm Wide; Aluminum Alloy Louvers 45 Pieces/m |
| Installation Process | Assemble Type |
| Packaging Method | Box |
| Supply Cycle | 10-15 Days |
| Mode of Transport | Highway And Sea Transportation |
| After-Sale Service | After Sales Guarantee for 5 Years |
